Difference between revisions of "KVM"
(→Virtual Machine Manager (app)) |
(→hypervisor) |
||
| Line 6: | Line 6: | ||
* Type 1 hypervisor: hypervisors run directly on the system hardware – A “bare metal” embedded hypervisor, | * Type 1 hypervisor: hypervisors run directly on the system hardware – A “bare metal” embedded hypervisor, | ||
* Type 2 hypervisor: hypervisors run on a host operating system that provides virtualization services, such as I/O device support and memory management. | * Type 2 hypervisor: hypervisors run on a host operating system that provides virtualization services, such as I/O device support and memory management. | ||
| − | :[[File:ClipCapIt-180622-175904.PNG| | + | :[[File:ClipCapIt-180622-175904.PNG|400px]] |
===KVM=== | ===KVM=== | ||
Revision as of 16:26, 22 June 2018
Introduction
hypervisor
A hypervisor or virtual machine monitor (VMM) is computer software, firmware or hardware that creates and runs virtual machines. A computer on which a hypervisor runs one or more virtual machines is called a host machine, and each virtual machine is called a guest machine. The hypervisor presents the guest operating systems with a virtual operating platform and manages the execution of the guest operating systems. Multiple instances of a variety of operating systems may share the virtualized hardware resources

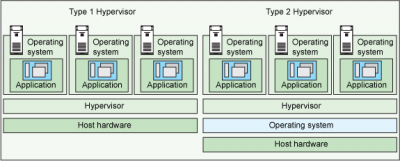

- Type 1 hypervisor: hypervisors run directly on the system hardware – A “bare metal” embedded hypervisor,
- Type 2 hypervisor: hypervisors run on a host operating system that provides virtualization services, such as I/O device support and memory management.
KVM
Kernel-based Virtual Machine (KVM) is a virtualization infrastructure for the Linux kernel that turns it into a hypervisor. It was merged into the Linux kernel mainline in kernel version 2.6.20, which was released on February 5, 2007.KVM requires a processor with hardware virtualization extensions.
libvirt
libvirt is an open-source API, daemon and management tool for managing platform virtualization.[3] It can be used to manage KVM, Xen, VMware ESX, QEMU and other virtualization technologies. These APIs are widely used in the orchestration layer of hypervisors in the development of a cloud-based solution.
Virtual Machine Manager (app)
The virt-manager application is a desktop user interface for managing virtual machines through libvirt. It primarily targets KVM VMs, but also manages Xen and LXC (linux containers). It presents a summary view of running domains, their live performance & resource utilization statistics. Wizards enable the creation of new domains, and configuration & adjustment of a domain’s resource allocation & virtual hardware. An embedded VNC and SPICE client viewer presents a full graphical console to the guest domain.
# virsh net-list Name State Autostart Persistent ---------------------------------------------------------- default active yes yes docker-machines active yes yes
